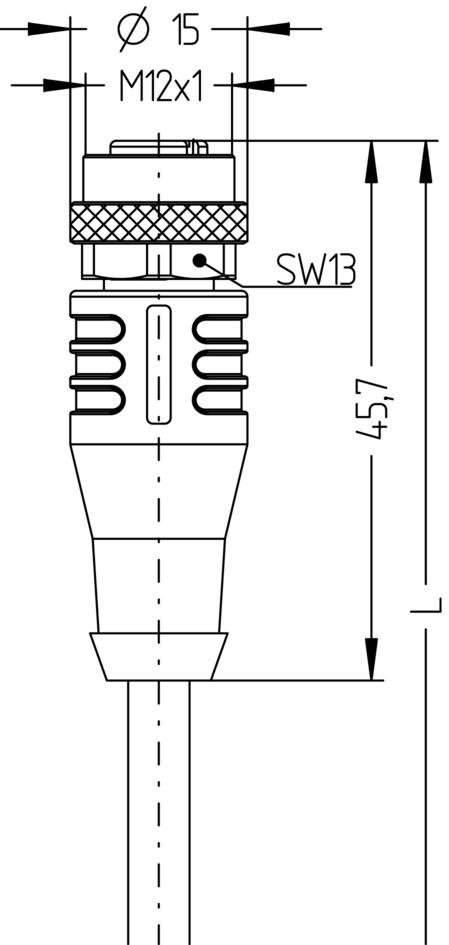

M12, female, straight, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Product description
Product type: Single-ended cordset
Application: Industrial Ethernet
Item description:
IE-WAKSY4.029-m/S5200
Item-No.: V0009954
Cable quality: S5200, PVC, UL
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -30°C...+90°C |
| Cable end assembly | Open cable end |
| Coding | D |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuSn, gold-plated |
| Contact-carrier material | Plastic, TPU, GN |
| Coupling nut material | Metal, CuZn, nickel-plated |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Grip body material | Plastic, TPU, BK |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Number of pins | 4 |
| Pin assignment |
|
| Rated voltage |
|
| Resistance | 5 mΩ |
| Shielding | With shielding |
| Standards | IEC 61076-2-101 |
| Transmission features | Cat5e |
Shielded, PVC-cable for industrial applications. The cable is AWM-Style 21694 verified or meets the Cat5e (electrical properties of EN 50288-2-1) requirements.
| Technical data | |
|---|---|
| Bending radius (fixed) | 3 x Ø-cable |
| Bending radius (repeated) | 7 x Ø-cable |
| Cable quality | S5200, PVC, UL |
| Cable-jacket material | PVC |
| Halogen-free | No |
| Jacket color | GN, similar RAL6018 |
| Outer diameter of jacket | 6.50 mm |
| Rated voltage cable | 600 V UL rating |
| Shielding | With shielding |
| Special features | Flame retardant, high flexibility, microbes resistant, oil resistant, oil- and fuel resistant, ozone resistant, PROFINET Type B, recyclable, RoHs compliant, acid- and alkali resistant, seawater resistant, UV resistant |
| Temperature range (fixed) | -20°C...+60°C |
| Temperature range (repeated) | -40°C...+80°C |
| Transmission features | Cat5e |
| UL AWM style | UL AWM 21694 |
| Wire colors | WH, BU, OG, YE |
| Wire cross-section | 1 x 4 x AWG22, star quad |
| Wire insulation material | PVC |
| Wire structure | 7 x 0.25 mm |
