M12, female, straight, 5 poles, M12, male, angled, 5 poles, rail approved
Product description
Product type: Double-ended cordset
Application: Sensor/actuator, Signal transmisison
Item description:

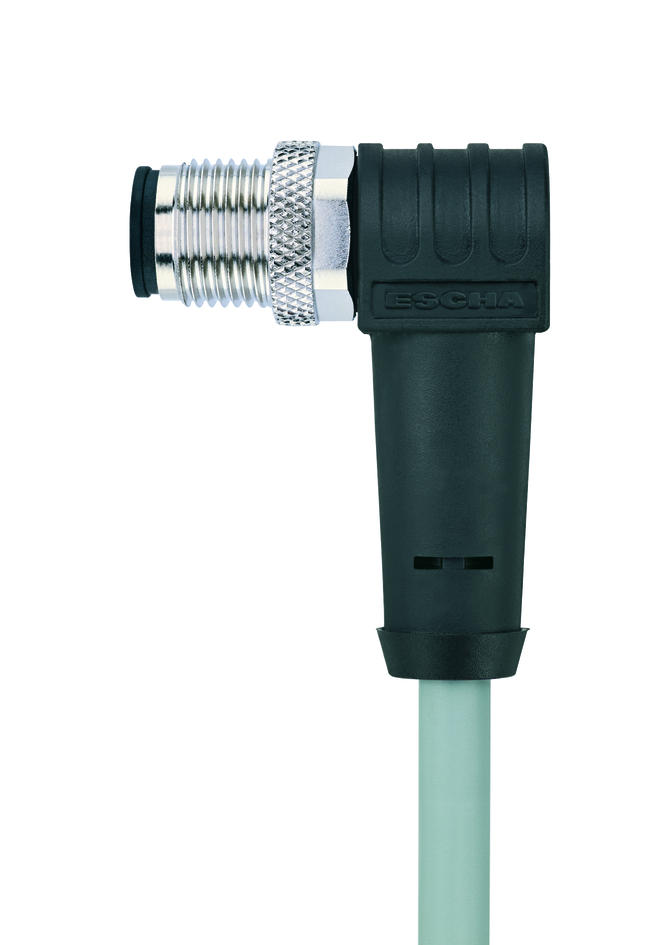

RA-WAK5.033-5-RA-WWAS5.033/S5300
Item-No.: 8111251
Cable quality: S5550, SABIX®
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | A-Side | B-Side |
|---|---|---|
| Coding of | A | A |
| Connector | Female, straight, M12 | Male, angled, M12 |
| Contact material | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK | Plastic, PA, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 4 A | 4 A |
| Degree of pollution | 3 | 3 |
| Degree of protection (mounted) | IP67 (-30°C...+90°C), IP65 (-40°C...+90°C) | |
| Fire prevention according to | DIN EN 45545-2 HL1-3 | |
| Grip body material | Plastic, TPU, BK | Plastic, TPU, BK |
| Insulation resistance |
|
|
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |
| Number of pins | 5 | 5 |
| Pin assignment |
|
|
| Rated voltage |
|
|
| Resistance | 5 mΩ | 5 mΩ |
| Sealing (female) material | FPM/FKM | |
| Shock & vibration | Class 1, Category B (DIN EN 61373) | |
| Standards | IEC 61076-2-101 | IEC 61076-2-101 |
| Temperature range | Tx (-40°C...+90°C) |
Halogen-free cable with improved behaviour in case of fire, easy to strip, flame retardant and self-extinguishing. The cable is intended for fixed, mechanically protected installation in railway vehicles. The cable fulfils the requirements according EN 45545-2 (HL1 - HL3). It is characterized by a wide temperature range. SABIX® is a registered trademark of SAB Bröckskes GmbH & Co. KG, Germany.
| Technical data | |
|---|---|
| Bending radius (fixed) | 5xØ-cable |
| Bending radius (repeated) | 10xØ-cable |
| Cable quality | S5550, SABIX® |
| Cable-jacket material | SABIX® |
| Fire prevention according to | DIN EN 45545-2 HL1-3 |
| Halogen-free | Yes |
| Jacket color | GY, similar RAL7032 |
| Outer diameter of jacket | 5.4 mm |
| Special features | Flame retardant, halogen free, RoHs compliant, self-extinguishing |
| Temperature range (fixed) | -40°C...+90°C |
| Temperature range (repeated) | -30°C...+90°C |
| Wire colors | WH, BN, GN, YE, GY |
| Wire cross-section | 5 x 0.50 mm² |
| Wire insulation material | SABIX® |
| Wire structure | 15 x 0,20 mm |
