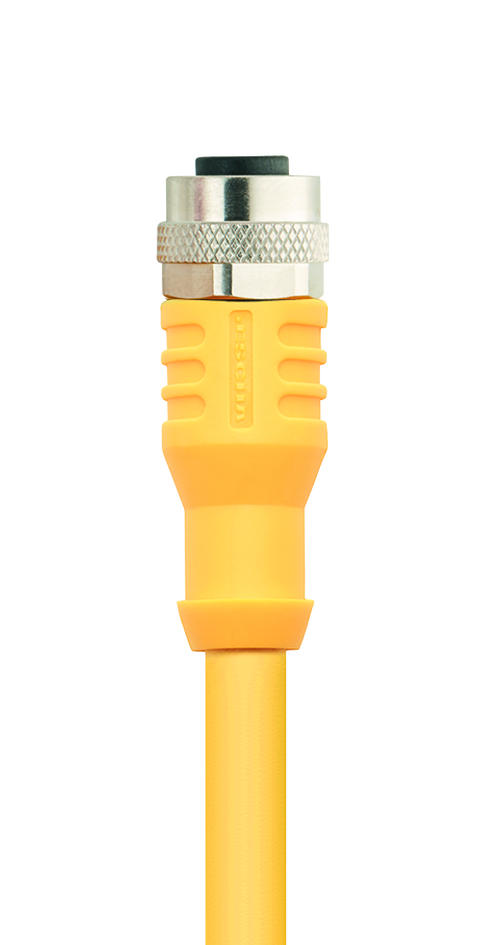

M12, female, straight, 5 poles, M12, male, straight, 5 poles, sensor-/actuator cable
Product description
Product type: Double-ended cordset
Application: Sensor/actuator
Item description:
AL-WAK4.5-5-AL-WAS4.5/S740YE/S600
Item-No.: 8092654
Cable quality: S740YE, PUR, welding sparks resistent, UL
Inquiry
Stock: 9 pcs
Packaging unit: 1 pcs
Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | A-Side | B-Side |
|---|---|---|
| Ambient temperature product | -30°C...+90°C | -30°C...+90°C |
| Coding of | A | A |
| Connector | Female, straight, M12 | Male, straight, M12 |
| Contact material | Metal, CuSn, gold-plated | Metal, CuSn, gold-plated |
| Contact-carrier material | Plastic, TPU, BK | Plastic, TPU, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 4 A | 4 A |
| Degree of pollution | 3 | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 | IP65, IP67, IP68 |
| Grip body material | Plastic, TPU, BK | Plastic, TPU, BK |
| Insulation resistance |
|
|
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |
| Number of pins | 5 | 5 |
| Pin assignment |
|
|
| Rated voltage |
|
|
| Resistance | 5 mΩ | 5 mΩ |
| Sealing (female) material | FPM/FKM | |
| Standards | IEC 61076-2-101 | IEC 61076-2-101 |
Flexible, silicone- and halogen free control cable with high mechanical strength. Due to its outstanding properties in drag-chain adaption, torsionresistance and weld-field immunity, it is very well suited for the flexible applications in robotics, handling- and assembly technology as well as machine tools. The cable meets the UL and CSA (UL10493/20549; cULus) requirements.
| Technical data | |
|---|---|
| Bending radius (fixed) | 5 x Ø-cable |
| Bending radius (repeated) | 10 x Ø-cable |
| Cable quality | S740YE, PUR, welding sparks resistent, UL |
| Cable-jacket material | PUR |
| Drag chain-application | 3 Mio. cycles |
| Halogen-free | Yes |
| Jacket color | YE, similar RAL 1018 |
| Outer diameter of jacket | 7 mm |
| Rated voltage cable | ≤300 V |
| Special features | Flame retardant, halogen free, hydrolysis proof, LABS free, oil resistant, ozone resistant, recyclable, RoHs compliant, acid- and alkali resistant, drag chain-adapted, welding sparks resistant, seawater resistant, silicone free, torsion resistant, UV resistant |
| Temperature range (drag chain) | -25°C…+60°C |
| Temperature range (fixed) | -40°C...+90°C |
| Temperature range (repeated) | -30°C...+90°C |
| Torsion | +/-180°/m, ≥ 1 Mio. cycles |
| Wire colors | BN, WH, BU, BK, GY |
| Wire cross-section | 5 x 0.34 mm² |
| Wire insulation material | PP |
| Wire structure | 42 x 0.10 mm |
