M8, female, straight, 4 poles, M8, male, straight, 4 poles, shielded, Industrial Ethernet
Product description
Product type: Double-ended cordset
Application: Industrial Ethernet
Item description:
IE-SKPSP4.054-1-IE-SSPSP4.054/S5059
Item-No.: 8089212
Cable quality: S5059, PUR, UL
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | A-Side | B-Side |
|---|---|---|
| Ambient temperature product | -30°C...+90°C | -30°C...+90°C |
| Coding of | P | P |

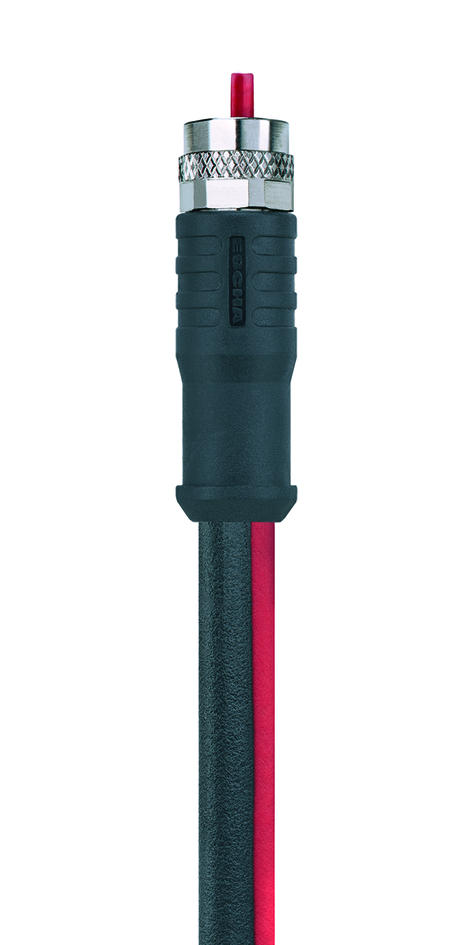

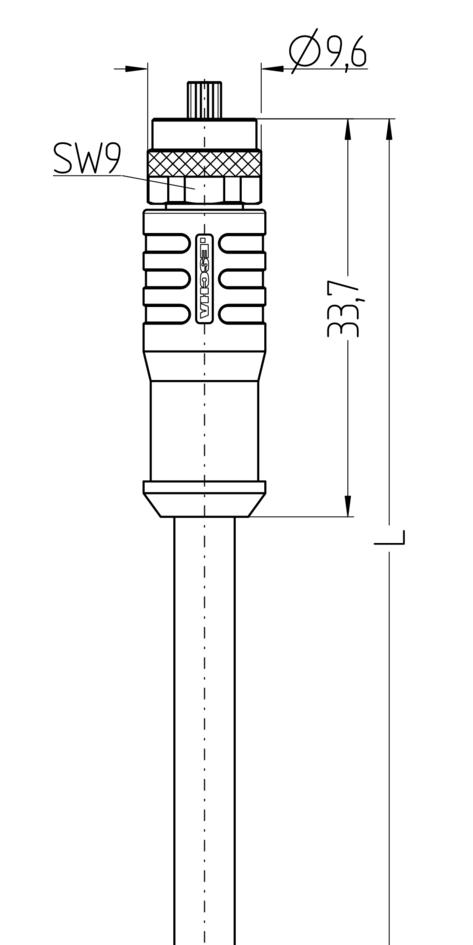

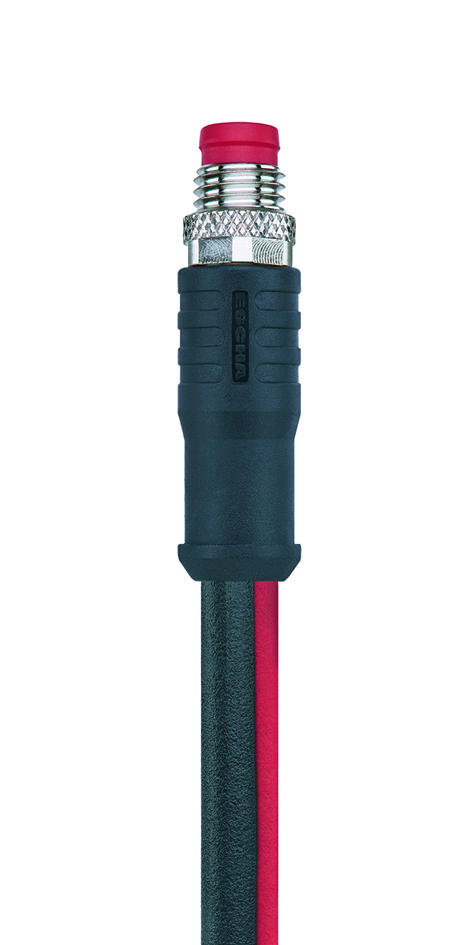

| Connector | Female, straight, M8 | Male, straight, M8 |
| Contact material | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Kunststoff, TPU, RD | Kunststoff, TPU, RD |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 4 A | 4 A |
| Degree of pollution | 3/2 | 3/2 |
| Degree of protection (mounted) | IP65, IP67, IP68 | IP65, IP67, IP68 |
| Grip body material | Plastic, TPU, BK | Plastic, TPU, BK |
| Insulation resistance |
|
|
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |
| Number of pins | 4 | 4 |
| Pin assignment |
|
|
| Rated voltage |
|
|
| Sealing (female) material | FPM/FKM | |
| Shielding | With shielding | With shielding |
| Standards | IEC 61076-2-104 | IEC 61076-2-104 |
| Transmission features | Cat5e | Cat5e |
Shielded, PUR-cable for EtherCAT P industrial applications. The cable is UL-verified or meets the Cat5e (electrical properties of EN 50288-2-1) requirements. Materials and a constructive setup allow for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable. A drag-chain application with up to 2 million bending cycles is possible.
| Technical data | |
|---|---|
| Bending radius (fixed) | 8 x Ø-cable |
| Bending radius (repeated) | 15 x Ø-cable |
| Cable quality | S5059, PUR, UL |
| Cable-jacket material | PUR |
| Drag chain-application | 3 Mio. bending cycles |
| Halogen-free | Yes |
| Jacket color | BK, with red vertical stripe |
| Outer diameter of jacket | 5.20 mm |
| Rated voltage cable | 300 V |
| Special features | EtherCAT P compliant, flame retardant, halogen free, high flexibility, hydrolysis proof, LABS free, microbes resistant, oil resistant, ozone resistant, recyclable, RoHs compliant, acid- and alkali resistant, drag chain-adapted, seawater resistant, UN ECE R 118, UV resistant |
| Temperature range (fixed) | -40°C...+80°C |
| Temperature range (repeated) | -30°C...+70°C |
| Transmission features | Cat5e |
| Wire colors | YE/OG ; WH/BU |
| Wire cross-section | 1 x 4 x AWG24, star quad |
| Wire insulation material | Foam-Skin Polyolefin |
| Wire structure | 7 x 0,22 mm |
