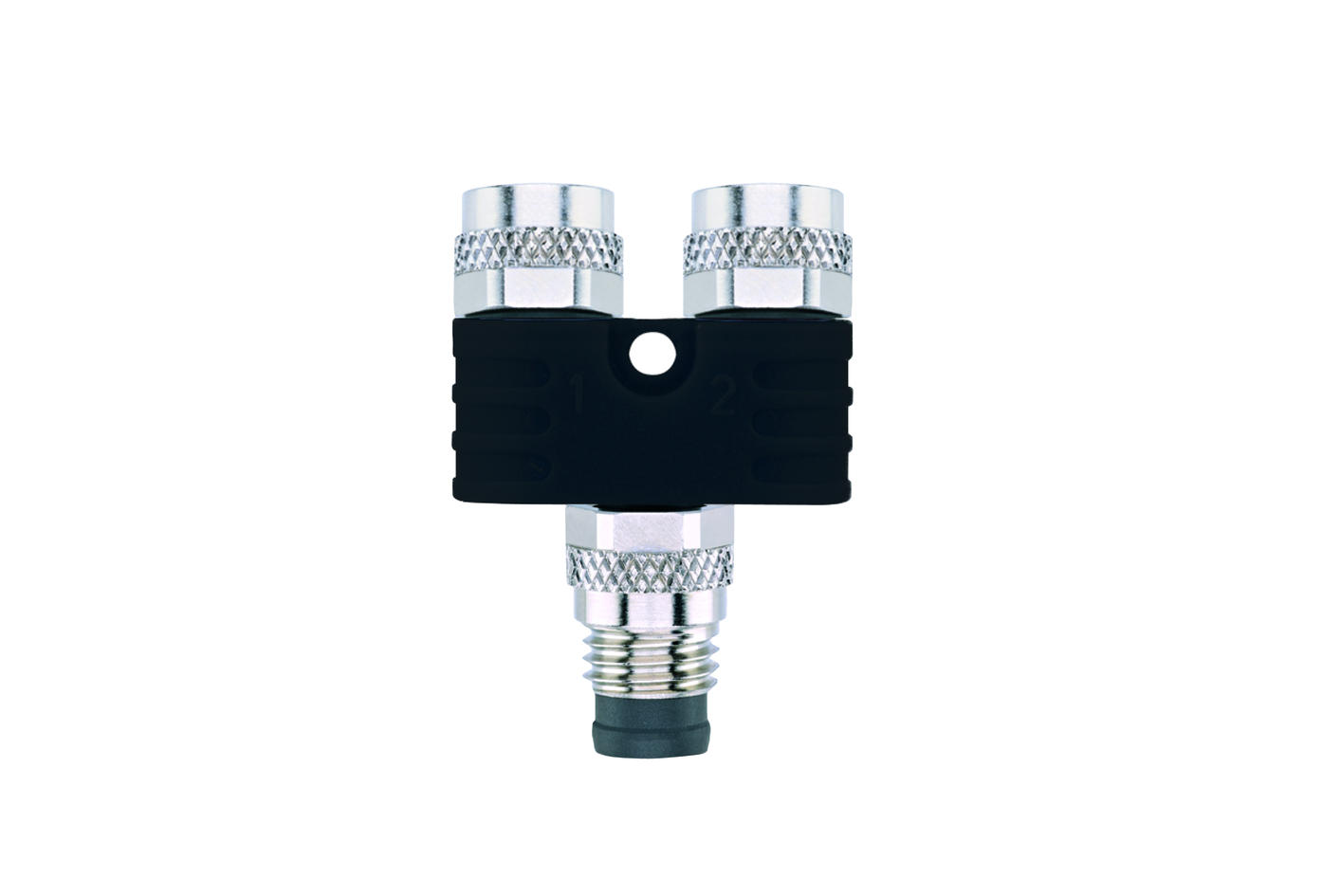

Y-splitter, M8, male, straight, 3 poles, M8, female, straight, 3 poles, M8, female, straight, 3 poles
Product description
Product type: without cable outlet
Application: Sensor/actuator
Item description: MB-SSP3-2SKP3-2xAND
Item-No.: 8083105
Inquiry
Stock: 4 pcs
Packaging unit: 1 pcs
Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | Exit 0 | Exit 1 | Exit 2 |
|---|---|---|---|
| Ambient temperature product | -30°C...+90°C | ||

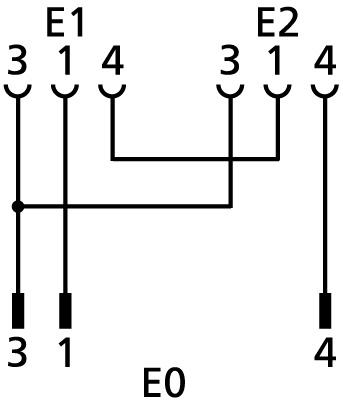

| Circuit logic | 2x passive AND | ||
| Connector | Male, M8 | Female, M8 | Female, M8 |
| Contact material | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, TPU, BK | Plastic, TPU, BK | Plastic, TPU, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 4 A | 4 A | 4 A |
| Degree of pollution | 3 | ||
| Degree of protection (mounted) | IP65, IP67, IP68 | ||
| Grip body material | Plastic, TPU, BU | ||
| Insulation resistance |
|
||
| Mechanical life-cycle | >100 mating cycles | ||
| Number of pins | 3 | 3 | 3 |
| Rated voltage |
|
|
|
| Sealing (female) material | FPM/FKM | ||
| Standards | IEC 61076-2-104 |
