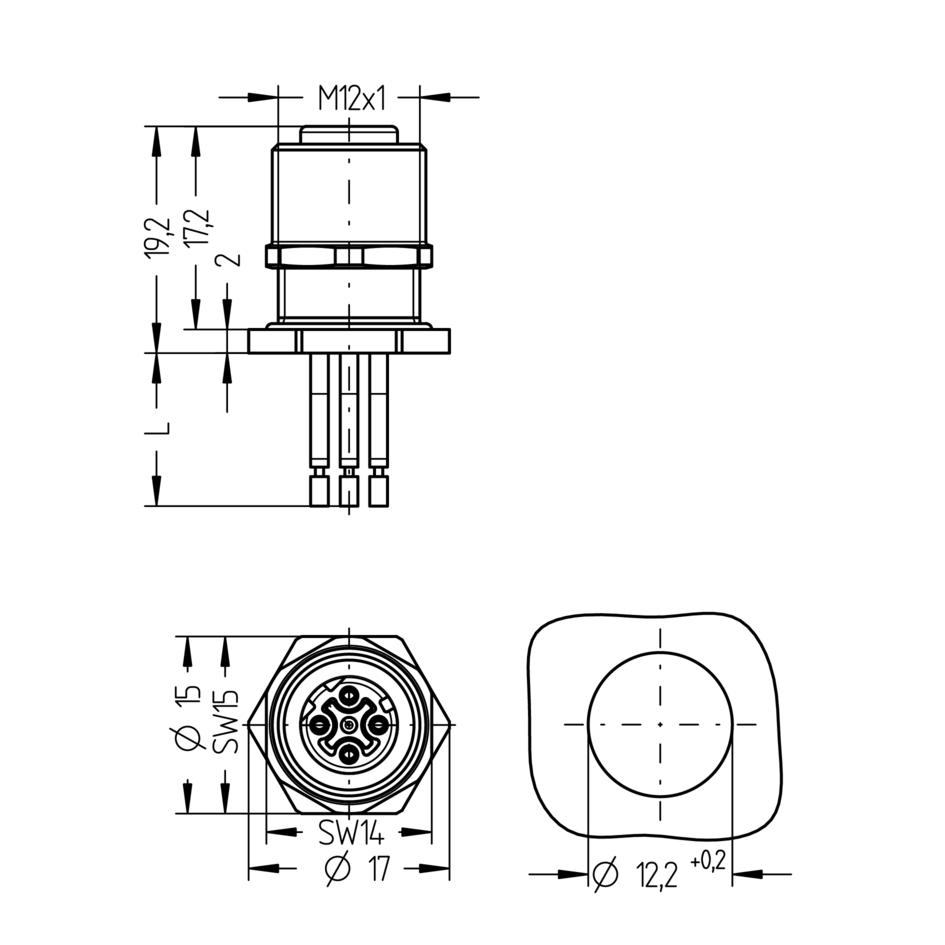

Receptacle, M12, female, straight, 4 poles, D-coded, back wall-mounting, wire contact, Industrial Ethernet
Product description
Product type: Receptacle
Application: Industrial Ethernet
Item description:
IE-FHM12KUD4.029-0,5/M12/S3550
Item-No.: 8072506
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+90°C |
| Coding | D |
| Connecting type | Wire contact |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA GF, GN |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Fastening thread | M12x1 |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Mounting direction | Back wall-mounting (incl. Fixing screw) |
| Number of pins | 4 |
| Rated voltage |
|
| Receptacle housing material | Metal, CuZn, nickel-plated |
| Sealing (female) material | FPM/FKM |
| Wire colors | YE/OG ; WH/BU |
| Wire cross-section | 12 x 0.14 mm² |
| Wire insulation material | PVC |
| Wire length | 0.5 m |
| Wrench size of fastening nut | A/F15 |
