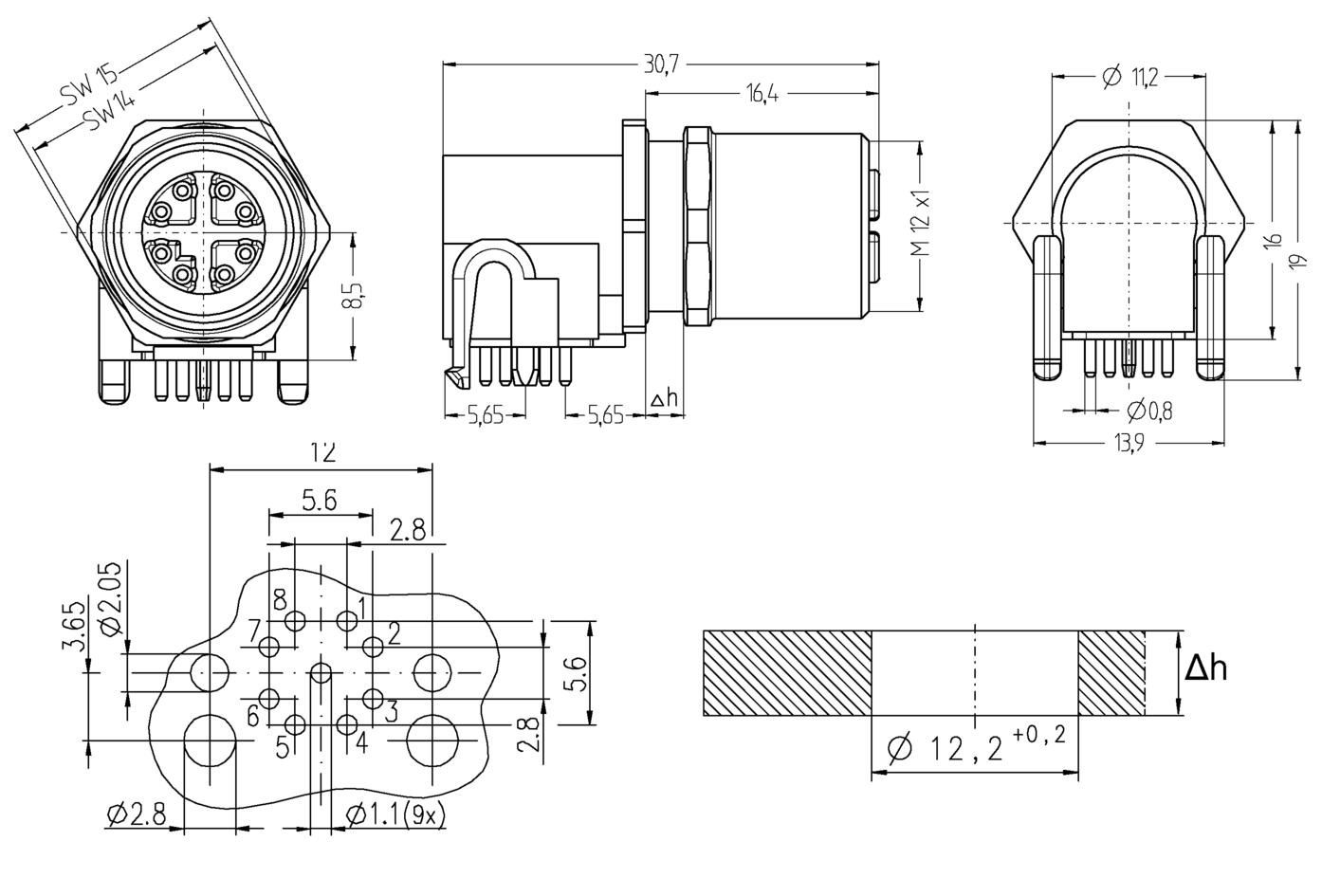

Receptacle, M12, female, angled, 8 poles, X-coded, back wall-mounting, print contact, shielded, Industrial Ethernet
Product description
Product type: Receptacle
Application: Industrial Ethernet
Item description:
IE-WFKFSX8-P/12/S3540
Item-No.: 8059346
Inquiry
Stock: 200 pcs
Packaging unit: 10 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+85°C |
| Coding | X |
| Connecting type | Print contact |
| Connector | Female, angled, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, GN |
| Current load per pin (at 40°C) | 0.5 A |
| Degree of pollution | 2 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Fire prevention according to | DIN EN 45545-2 HL1-3 |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Mounting direction | Back wall-mounting (incl. Fixing screw) |
| Number of pins | 8 |
| Rated voltage |
|
| Receptacle housing material | Metal, CuZn, nickel-plated |
| Sealing (female) material | FPM/FKM |
| Shielding | With shielding |
| Shock & vibration | Class 1, Category B (DIN EN 61373) |
| Standards | IEC 61076-2-109 |
| Temperature range | Tx (-40°C...+85°C) |
| Transmission features | Cat6A |
| Wall thickness area (Δh) | 2,5...4 mm |
