M12, female, angled, 12 poles, M12, male, angled, 12 poles, shielded, sensor-/actuator cable
Product description
Product type: Double-ended cordset
Application: Sensor/actuator
Item description:
AL-WWAKS12-m-AL-WWASS12/S370
Item-No.: V0003232
Cable quality: S370, PUR, UL
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Certifications
Product details
| Technical data | A-Side | B-Side |
|---|---|---|
| Ambient temperature product | -30°C...+90°C | -30°C...+90°C |
| Coding of | A | A |

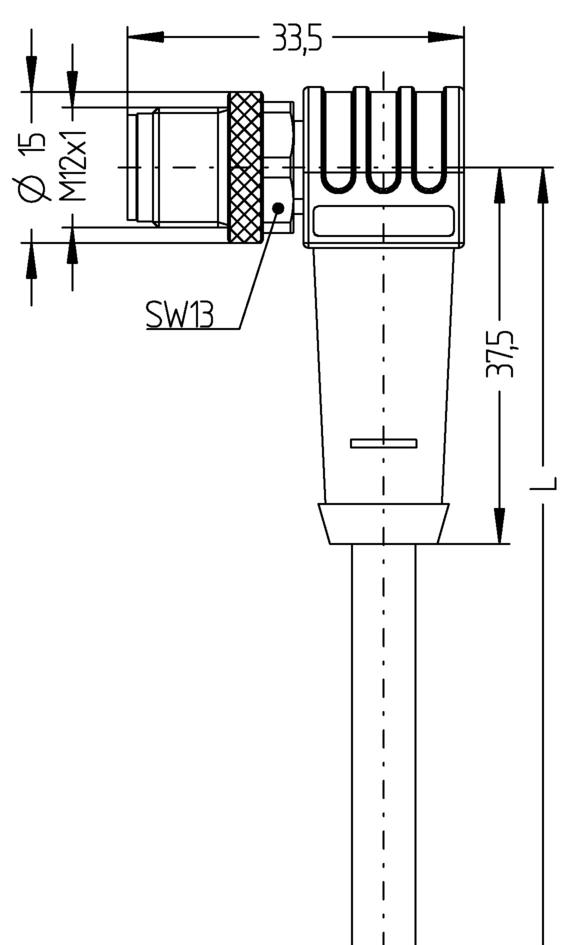

| Connector | Female, angled, M12 | Male, angled, M12 |
| Contact material | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, TPU, BK | Plastic, TPU, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 1.5 A | 1.5 A |
| Degree of pollution | 3 | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 | IP65, IP67, IP68 |
| Grip body material | Plastic, TPU, BK | Plastic, TPU, BK |
| Insulation resistance |
|
|
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |
| Number of pins | 12 | 12 |
| Pin assignment |
|
|
| Rated voltage |
|
|
| Resistance | 5 mΩ | 5 mΩ |
| Sealing (female) material | FPM/FKM | |
| Shielding | With shielding | With shielding |
| Standards | IEC 61076-2-101 | IEC 61076-2-101 |
Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is chemicals, hydrolysis-, and microbesresistant. The drag-chain application is possible at a bending radius of minimum10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Very good EMC-features with shielded versions.
| Technical data | |
|---|---|
| Bending radius (fixed) | 5 x Ø-cable |
| Bending radius (repeated) | 12 x Ø-cable |
| Cable quality | S370, PUR, UL |
| Cable-jacket material | PUR |
| Drag chain-application | ≥2 Mio. cycles |
| Halogen-free | Yes |
| Jacket color | BK, similar RAL9005 |
| Outer diameter of jacket | 60 mm |
| Rated voltage cable | ≤300 V |
| Shielding | Yes |
| Special features | Flame retardant, halogen free, hydrolysis proof, LABS free, oil resistant, ozone resistant, recyclable, RoHs compliant, acid- and alkali resistant, drag chain-adapted, welding sparks resistant, seawater resistant, silicone free, torsion resistant, UV resistant |
| Temperature range (drag chain) | -25°C…+60°C |
| Temperature range (fixed) | -40°C...+90°C |
| Temperature range (repeated) | -30°C...+90°C |
| Torsion | +/-180°/m, ≥ 0.5 Mio. cycles |
| Wire colors | BN, BU, WH, GN, PK, YE, BK, GY, RD, VT, GYPK, RDBU |
| Wire cross-section | 12 x 0.14 mm² |
| Wire insulation material | PP |
| Wire structure | 18 x 0.10 mm |
