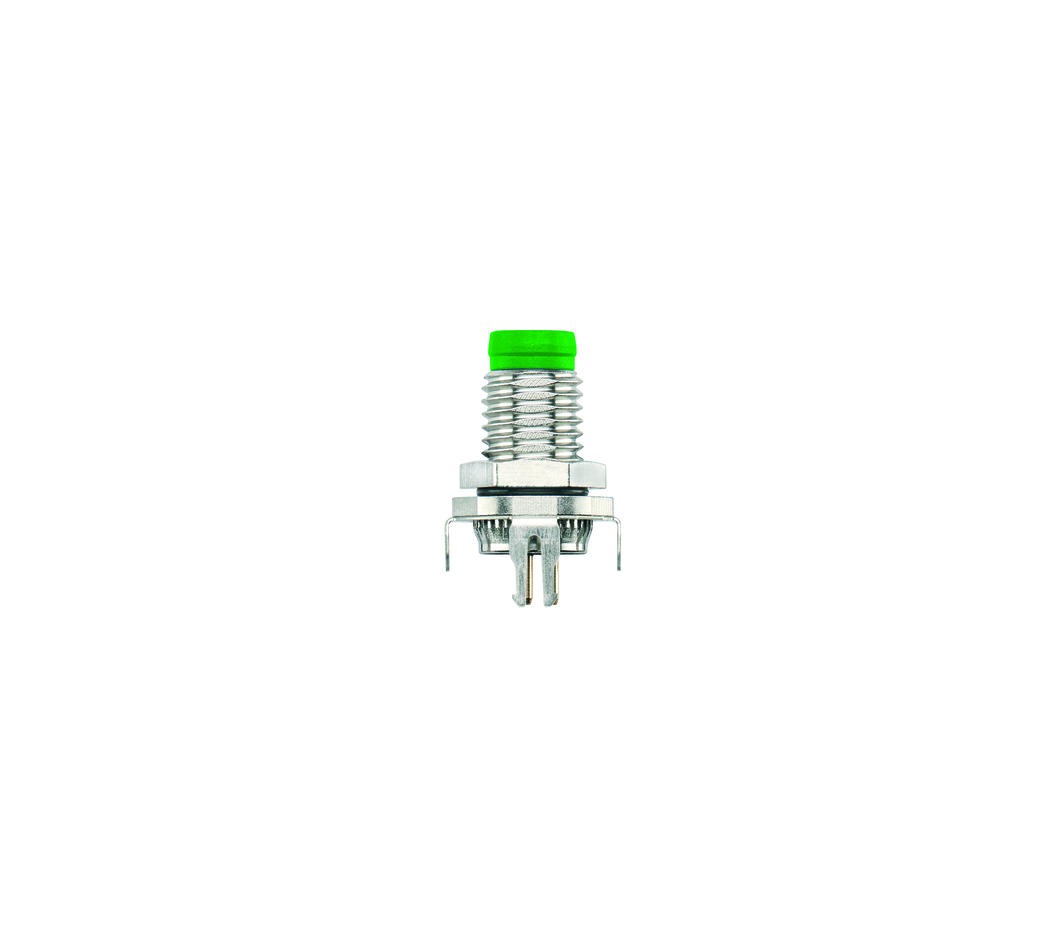

Receptacle, M8, male, straight, 4 poles, D-coded, back wall-mounting, print contact, shielded, Industrial Ethernet
Product description
Product type: Receptacle
Application: Industrial Ethernet
Item description: IE-FHM8SSD4-P/M8
Item-No.: 8089338
Inquiry
Stock: Currently out of stock.
Packaging unit: 10 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -30°C...+90°C |
| Coding | D |
| Connecting type | Print contact |
| Connector | Male, straight, M8 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA GF, GN |
| Current load per pin (at 40°C) | 4.0 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Fastening thread | M8x1 |
| Insulation resistance |
|
| Material of external sealing | FPM/FKM |
| Mechanical life-cycle | >100 mating cycles |
| Mounting direction | Back wall-mounting (incl. Fixing screw) |
| Number of pins | 4 |
| Rated voltage |
|
| Receptacle housing material | Metal, CuZn, nickel-plated |
| Standards | IEC 61076-2-114 |
| Transmission features | Cat5e |
