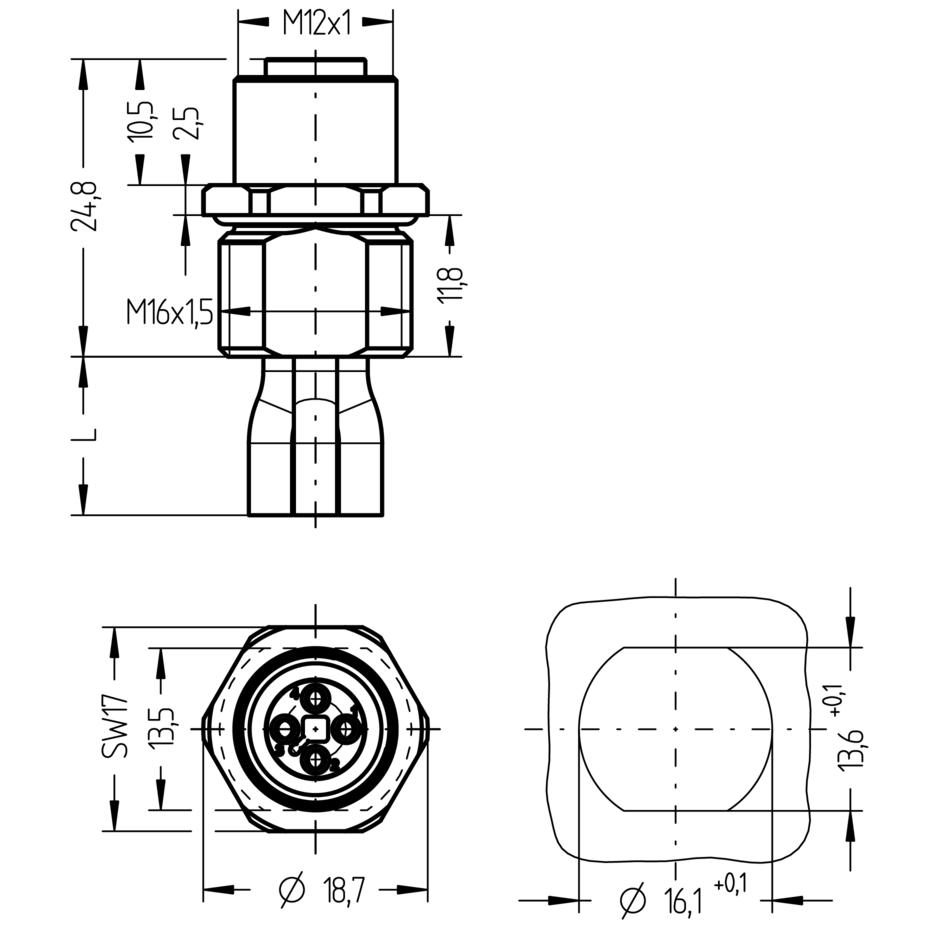

Receptacle, M12, female, straight, 4 poles, T-coded, front wall-mounting, wire contact, POWER
Product description
Product type: Receptacle
Application: POWER
Item description:
PT-FVM12KU4-0,2/M16/S5015
Item-No.: 8087084
Inquiry
Stock: 600 pcs
Packaging unit: 5 pcs
Minimum quantity:
• Stock sale: min. 5 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -30°C...+90°C |
| Coding | T |
| Connecting type | Wire contact |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK |
| Current load per pin (at 40°C) | 12 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Fastening thread | M16x1.5 |
| Mechanical life-cycle | >100 mating cycles |
| Mounting direction | Front wall-mounting (without fixing screw) |
| Number of pins | 4 |
| Pin assignment |
|
| Rated voltage |
|
| Receptacle housing material | Metal, CuZn, nickel-plated |
| Resistance | 3 mΩ |
| Sealing (female) material | FPM/FKM |
| Standards | IEC 61076-2-111 |
| Wire colors | BN, WH, BU, BK |
| Wire cross-section | 4 x 1.5 mm² |
| Wire insulation material | PVC |
| Wire length | 0.2 m |
