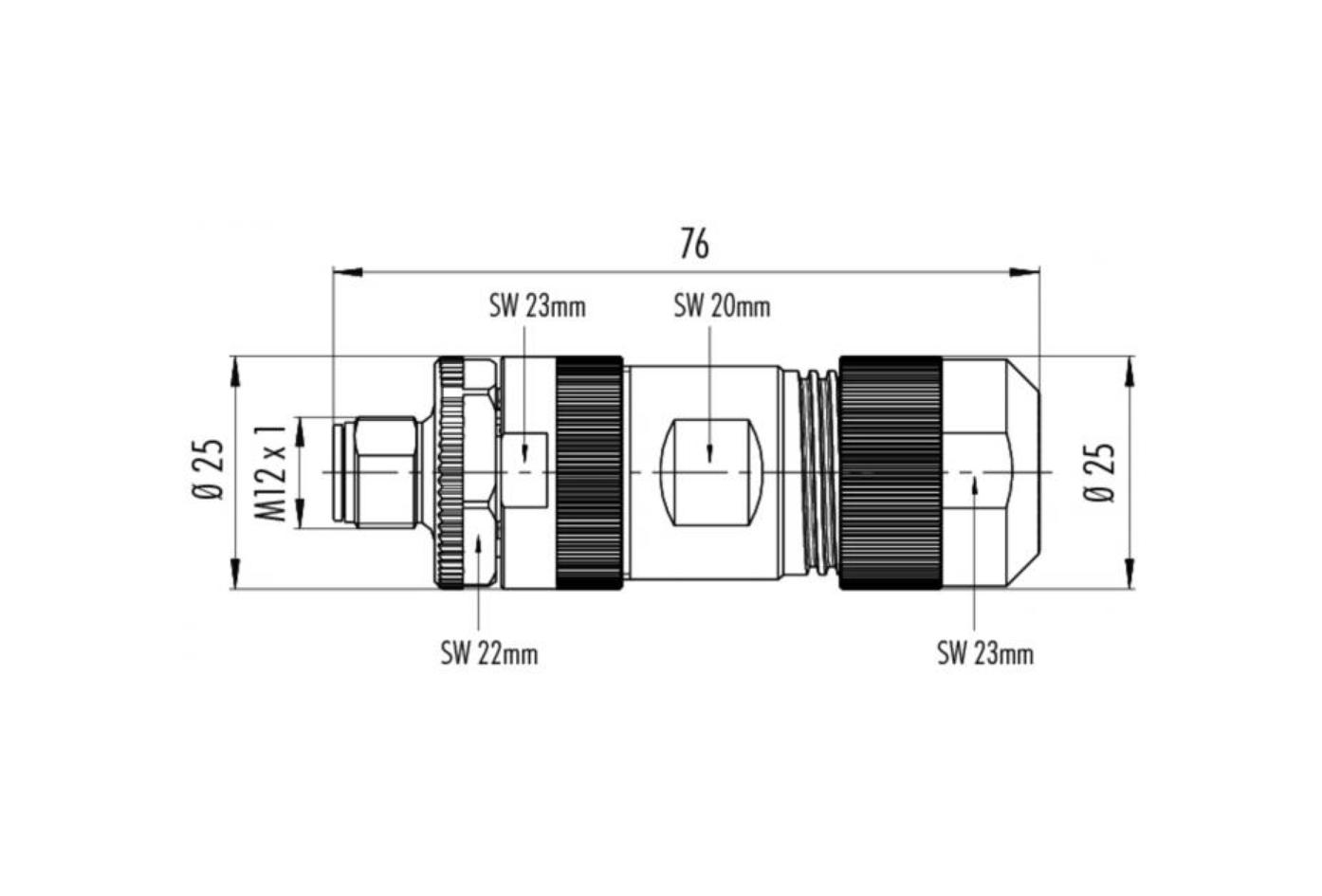

Field-wireable, M12, male, straight, 4+FE, L-coded, screw-/clamp contact, 63V 16A
Product description
Product type: Field-wireable
Application: POWER
Item description: PL-WASC5K
Item-No.: 8086299
Inquiry
Stock: 40 pcs
Packaging unit: 1 pcs
Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+85°C |
| Cable outlet | 8...13 mm |
| Coding | L |
| Connecting cross-section | Max. 2,5 mm² |
| Connecting type | Screw-/clamp contact |
| Connector | Male, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, GY |
| Current load per pin (at 40°C) | 16 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP67 |
| Grip body material | Plastic, PA, BK |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Number of pins | 4+FE |
| Rated voltage |
|
| Resistance | 5 mΩ |
| Standards | IEC 61076-2-101 |
