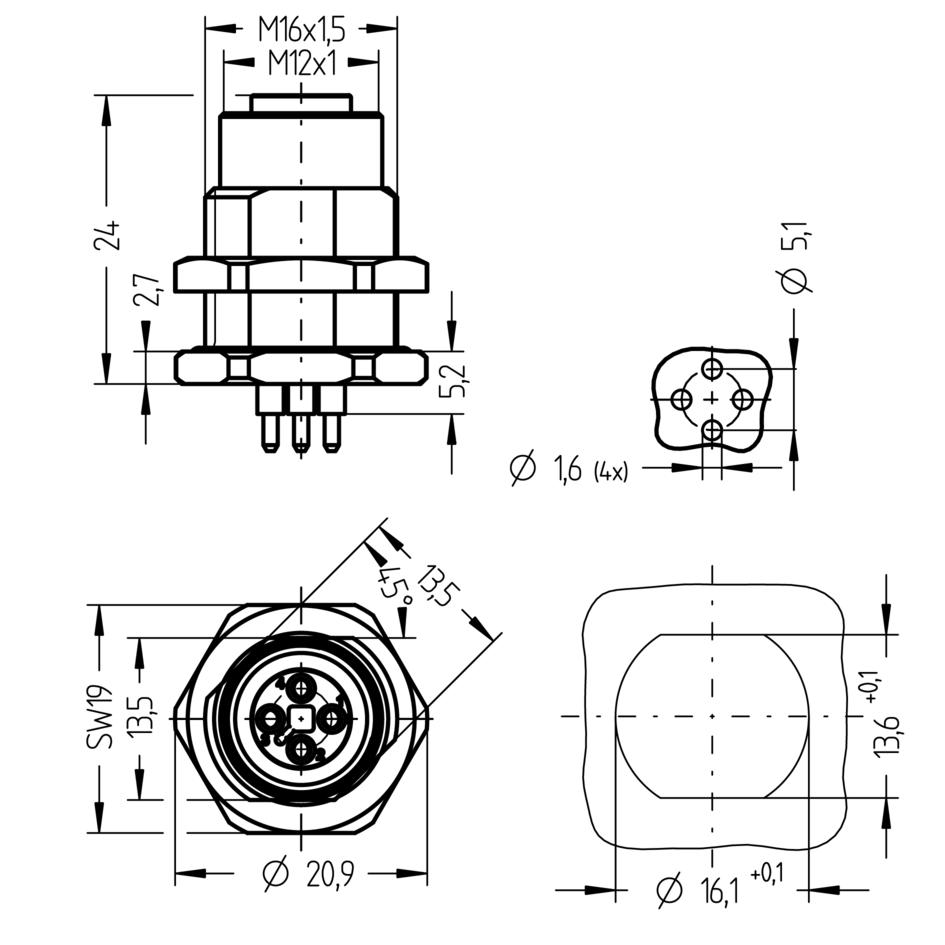

Receptacle, M12, female, straight, 4 poles, T-coded, back wall-mounting, print contact, POWER
Product description
Product type: Receptacle
Application: POWER
Item description: PT-FHM12KU4-P/M16
Item-No.: 8086192
Inquiry
Stock: Currently out of stock.
Packaging unit: 10 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -30°C...+90°C |
| Coding | T |
| Connecting type | Print contact |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK |
| Current load per pin (at 40°C) | 12 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Fastening thread | M16x1.5 |
| Mechanical life-cycle | >100 mating cycles |
| Mounting direction | Back wall-mounting (incl. Fixing screw) |
| Number of pins | 4 |
| Rated voltage |
|
| Receptacle housing material | Metal, CuZn, nickel-plated |
| Resistance | 3 mΩ |
| Sealing (female) material | FPM/FKM |
| Standards | IEC 61076-2-111 |
