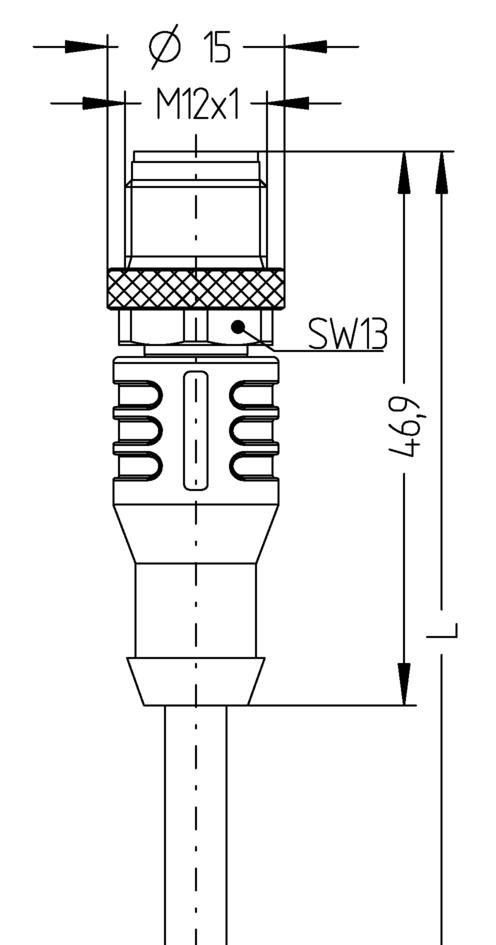

Y-splitter, M12, female, straight, 4 poles, with cable outlet, M12, male, straight, 3 poles, M12, male, straight, 3 poles
Product description
Product type: with cable outlet
Application: Sensor/actuator
Item description:
YK-FK4M12-2AL-WAS3-2/2/P00
Item-No.: 8076014
Cable quality: P00, PVC
Cable length:
Inquiry
Minimum quantity:10 pcs
Packaging unit:1 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit.
Certifications
![CE CE](https://www.escha.net/media/storage/CE_logo.jpg_preview300.jpg)
![UKCA UKCA](https://www.escha.net/media/storage/UKCA.jpg_preview300.jpg)
![SIHI E SIHI E](https://www.escha.net/media/storage/SIHI_electrotechnical_expertise.jpg_preview300.jpg)
![CHINA RoHS CHINA RoHS](https://www.escha.net/media/storage/China_RoHS.jpg_preview300.jpg)
Product details
Technical data | Exit 0 | Exit 1 | Exit 2 |
---|---|---|---|
Ambient temperature product | -30°C...+90°C | ||
Coding of | A | A | A |
Connector | Female, M12, straight | Male, M12, straight | Male, M12, straight |
Contact material | Metal, CuZn, gold-plated | Metal, CuSn, gold-plated | Metal, CuSn, gold-plated |
Contact-carrier material | Plastic, TPU, BK | Plastic, TPU, BK | Plastic, TPU, BK |
Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
Current load (at 40°C) | 4 A | 4 A | 4 A |
Degree of pollution | 3 | ||
Degree of protection (mounted) | IP65, IP67, IP68 | ||
Grip body material | Plastic, TPU, BK | ||
Insulation resistance |
|
||
Mechanical life-cycle | >100 mating cycles | ||
Number of pins | 4 | 3 | 3 |
Rated voltage |
|
|
|
Sealing (female) material | FPM/FKM | ||
Standards | IEC 61076-2-101 |
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Technical data | |
---|---|
Bending radius (fixed) | 5 x Ø-cable |
Bending radius (repeated) | 10 x Ø-cable |
Cable quality | P00, PVC |
Cable-jacket material | PVC |
Jacket color | GY, similar RAL7040 |
Outer diameter of jacket | 4.20 mm |
Rated voltage cable | ≤300 V |
Special features | Good resistance against oils and chemicals, LABS free, ozone resistant, recyclable, RoHs compliant, acid- and alkali resistant, seawater resistant, UV resistant |
Temperature range (fixed) | -25°C...+80°C |
Temperature range (repeated) | 0°C...+80°C |
Wire colors | BN, BU, BK |
Wire cross-section | 3 x 0.34 mm² |
Wire insulation material | PVC |
Wire structure | 19 x 0.15 mm |
