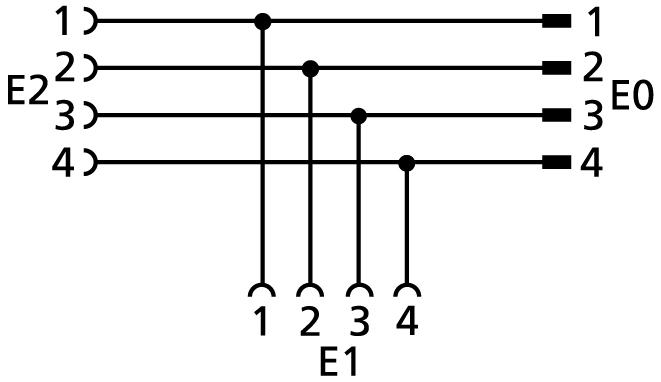

T-splitter, M12, male, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, POWER
Product description
Product type: Splitter
Application: POWER
Item description: PT-TM12-S4-2K4
Item-No.: 8067897
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | Exit 0 | Exit 1 | Exit 2 |
|---|---|---|---|
| Ambient temperature product | -30°C...+90°C | ||
| Coding of | T | T | T |
| Connector | Male, M12 | Female, M12 | Female, M12 |
| Contact material | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK | Plastic, PA, BK | Plastic, PA, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 12 A | 12 A | 12 A |
| Degree of pollution | 3 | ||
| Degree of protection (mounted) | IP65, IP67, IP68 | ||
| Grip body material | Plastic, TPU, BK | ||
| Insulation resistance |
|
||
| Mechanical life-cycle | >100 mating cycles | ||
| Number of pins | 4 | 4 | 4 |
| Rated voltage |
|
|
|
| Sealing (female) material | FPM/FKM | ||
| Standards | IEC 61076-2-111 |
