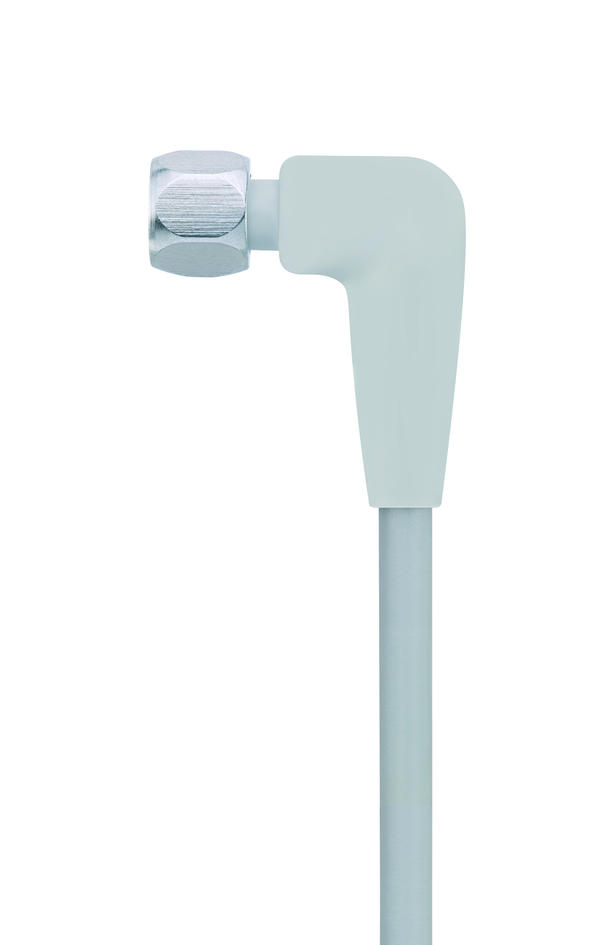

M8, female, angled, 3 poles, Food & Beverage

Product description

Product type: Single-ended cordset

Application: Sensor/actuator

Item description: FB-SWKPH3-2/P00

Item-No.: 8063718

Cable quality: P00, PVC

Cable length:

Inquiry

Stock: 103 pcs

Packaging unit: 1 pcs

Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs

Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs

Certifications

Product details

Technical data
Ambient temperature product	-40°C...+105°C
Cable end assembly	Open cable end
Connector	Female, angled, M8
Contact material	Metal, CuZn, gold-plated
Contact-carrier material	Plastic, PP, GY
Coupling nut material	Stainless steel, V4A
Current load per pin (at 40°C)	4 A
Degree of pollution	3
Degree of protection (mounted)	IP65, IP67, IP68, IP69
Grip body material	Plastic, TPE, GY
Insulation resistance	≥10⁸ Ω
Mechanical life-cycle	>100 mating cycles
Number of pins	3
Pin assignment	1 BN, 3 BU, 4 BK
Rated voltage	60V
Sealing (female) material	EPDM
Standards	IEC 61076-2-104

PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.

Technical data
Bending radius (fixed)	5 x Ø-cable
Bending radius (repeated)	10 x Ø-cable
Cable quality	P00, PVC
Cable-jacket material	PVC
Jacket color	GY, similar RAL7040
Outer diameter of jacket	40 mm
Rated voltage cable	≤300 V
Special features	Good resistance against oils and chemicals, LABS free, ozone resistant, recyclable, RoHs compliant, acid- and alkali resistant, seawater resistant, UV resistant
Temperature range (fixed)	-25°C...+80°C
Temperature range (repeated)	0°C...+80°C
Wire colors	BN, BU, BK
Wire cross-section	3 x 0.25 mm²
Wire insulation material	PVC
Wire structure	14 x 0.15 mm
