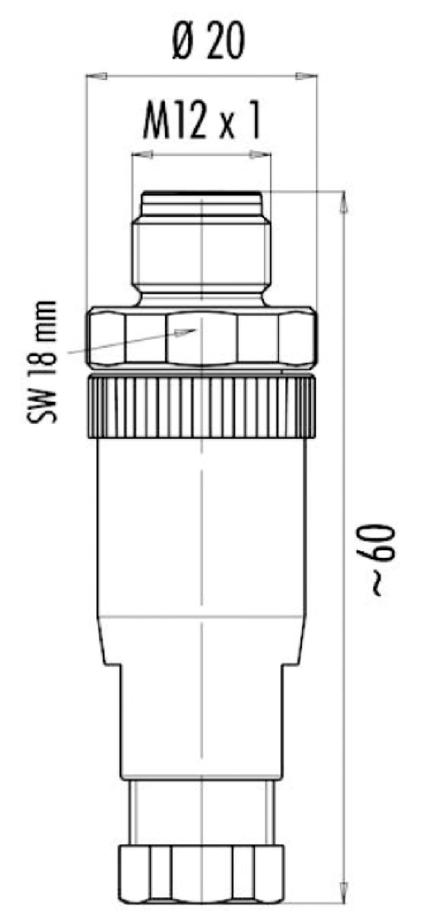

Field-wireable, M12, male, straight, 5 poles, screw-/clamp contact, stainless steel, 60V 4A
Product description
Product type: Field-wireable
Application: Sensor/actuator
Item description: WASCE5K
Item-No.: 8063394
Inquiry
Stock: 174 pcs
Packaging unit: 1 pcs
Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+85°C |
| Cable outlet | 4...6 mm |
| Coding | A |
| Connecting cross-section | Max. 0.75 mm² |
| Connecting type | Screw-/clamp contact |
| Connector | Male, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK |
| Coupling nut material | Stainless steel, V4A |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP67 |
| Grip body material | Plastic, PA, BK |
| Mechanical life-cycle | >100 mating cycles |
| Number of pins | 5 |
| Rated voltage |
|
| Resistance | 3 mΩ |
| Standards | IEC 61076-2-101 |
