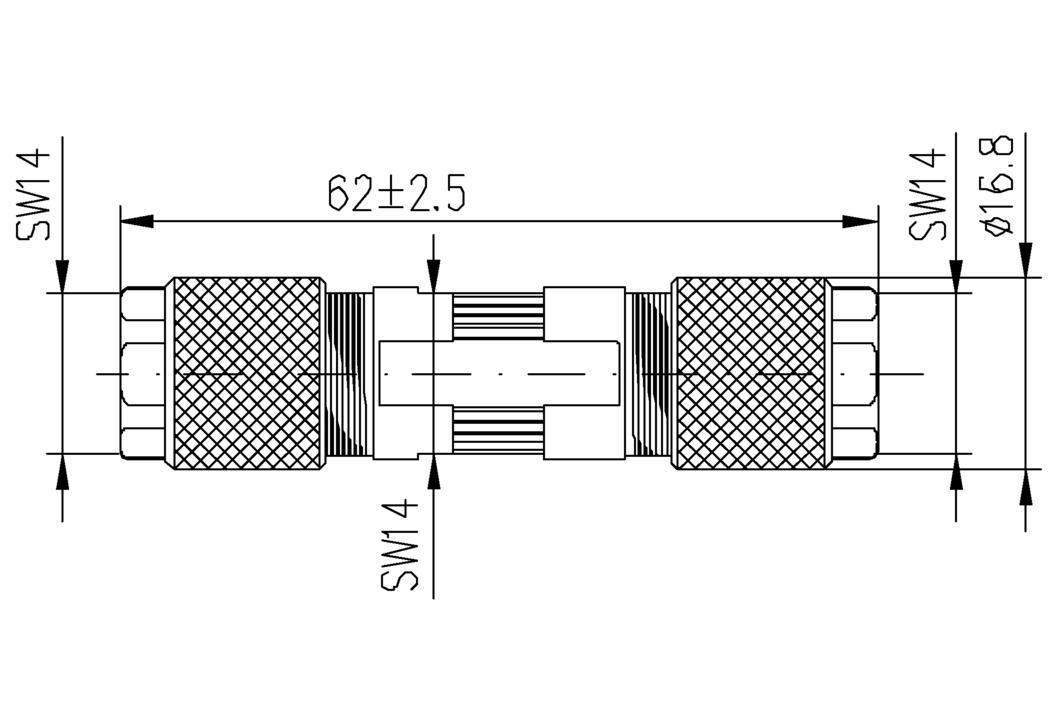

Wiring connector, M12, straight, 8 poles, shielded, Industrial Ethernet
Product description
Product type: Wiring connector
Application: Industrial Ethernet
Item description: IE-LVCS8
Item-No.: 8055776
Inquiry
Stock: 278 pcs
Packaging unit: 1 pcs
Minimum quantity:
▪ Stock sale: min. 1 pcs
▪ Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+85°C |
| Cable outlet | 5...9,7mm |
| Connecting cross-section | AWG26/1 - AWG22/1, AWG26/7 - AWG22/7 |
| Connecting type | Insulation displacement contact |
| Contact material | Metal, CuSn |
| Coupling nut material | Metal, CuZn, nickel-plated |
| Current load per pin (at 40°C) | 0.5 A |
| Degree of pollution | 1 |
| Degree of protection (mounted) | IP65, IP67 |
| Housing material | Zinc die-cast |
| Insulation resistance |
|
| Number of pins | 8 |
| Pin assignment |
|
| Rated voltage |
|
| Shielding | With shielding |
| Transmission features | Cat7 |
