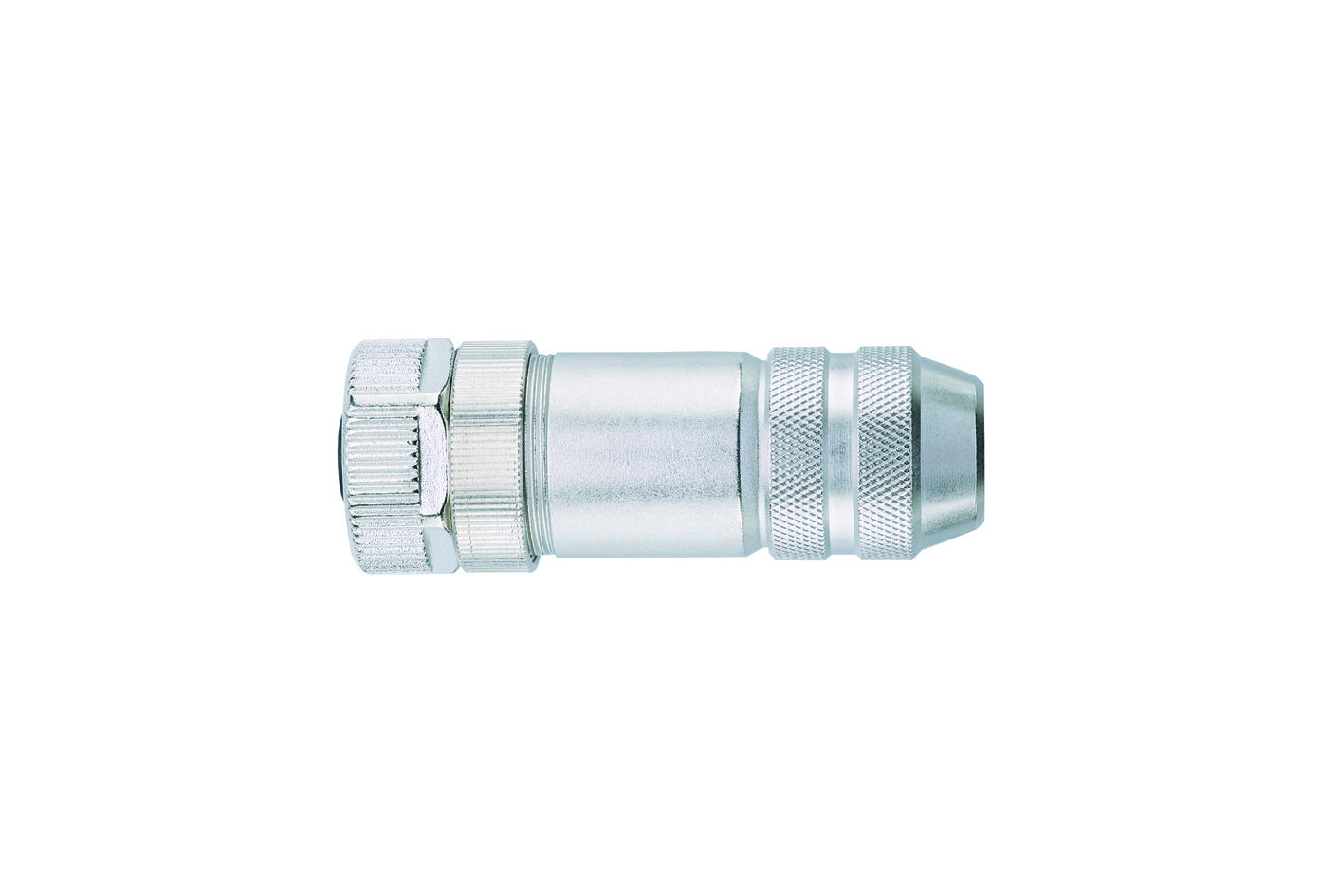

Field-wireable, M12, female, straight, 5 poles, B-coded, screw-/clamp contact, shielded, 125V 4A
Product description
Product type: Field-wireable
Application: Profibus
Item description: PB-WAKCSW4.5K
Item-No.: 8031376
Inquiry
Stock: 459 pcs
Packaging unit: 1 pcs
Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+85°C |
| Cable outlet | 6,5...8,5 mm |
| Coding | B |
| Connecting cross-section | Max. 0.75 mm² |
| Connecting type | Screw-/clamp contact |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK |
| Coupling nut material | Metal, GD-ZN, nickel-plated |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP67 |
| Grip body material | Zinc die-cast, nickel-plated |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Number of pins | 5 |
| Rated voltage |
|
| Shielding | With shielding |
| Standards | IEC 61076-2-101 |
