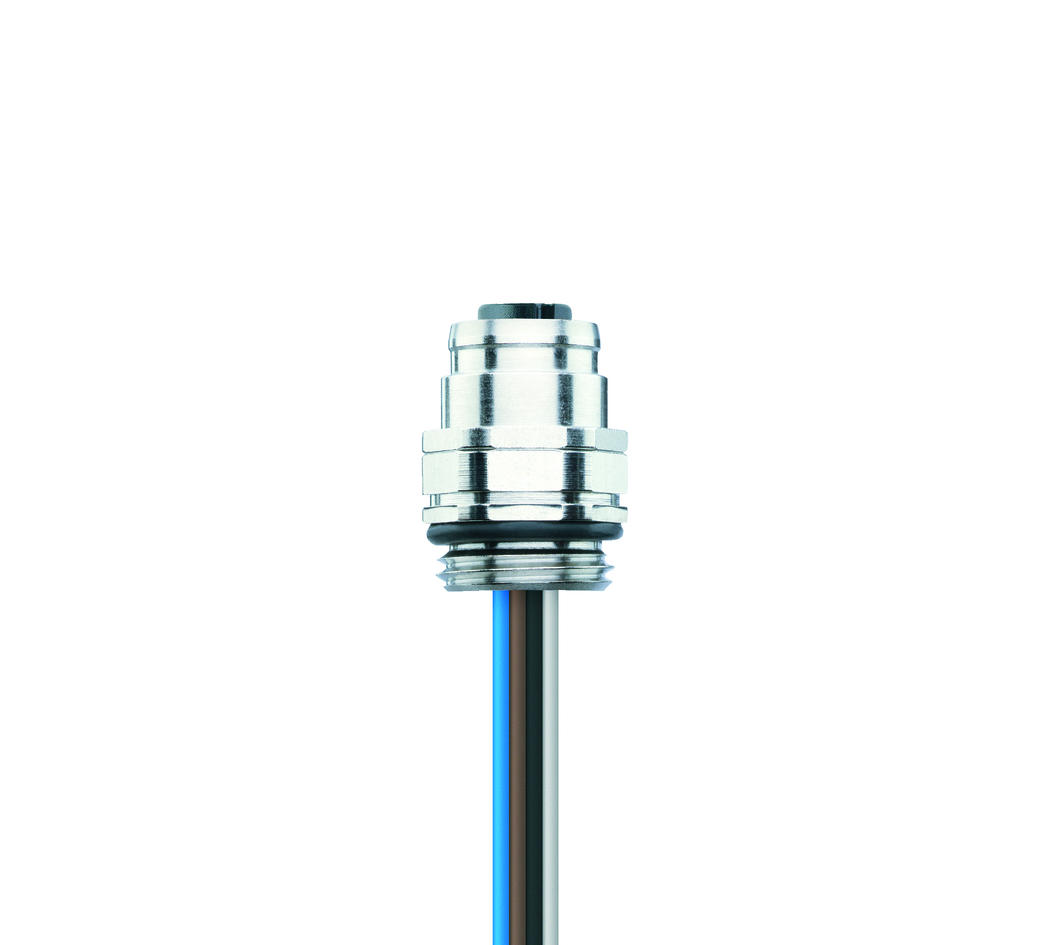

Receptacle, M12, female, straight, 5 poles, front wall-mounting, wire contact
Product description
Product type: Receptacle
Application: Sensor/actuator
Item description: EC-FKD4.5-0,5/16
Item-No.: 8027528
Inquiry
Stock: 3 pcs
Packaging unit: 1 pcs
Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Adjustable fixing screw | Yes |
| Ambient temperature product | -30°C...+90°C |
| Coding | A |
| Connecting type | Wire contact |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA GF, BK |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Fastening thread | M16x1.5 |
| Insulation resistance |
|
| Material of external sealing | NBR |
| Mechanical life-cycle | >100 mating cycles |
| Mounting direction | Front wall-mounting (without fixing screw) |
| Number of pins | 5 |
| Pin assignment |
|
| Rated voltage |
|
| Receptacle housing material | Metal, CuZn, nickel-plated |
| Sealing (female) material | FPM/FKM |
| Standards | IEC 61076-2-101 |
| Wire colors | BN, WH, BU, BK, GY |
| Wire cross-section | 5 x 0.34 mm² |
| Wire insulation material | PVC |
| Wire length | 0.5 m |
