Field-wireable, M12, male, angled, 4 poles, insulation displacement contact, 32V 4A
Product description
Product type: Field-wireable
Application: Sensor/actuator
Item description: WWASC4S
Item-No.: 8019717
Inquiry
Stock: 324 pcs
Packaging unit: 1 pcs
Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+85°C |
| Cable outlet | 4...5,1mm |
| Coding | A |
| Connecting cross-section | Max. 0.5 mm² |
| Connecting type | Insulation displacement contact |

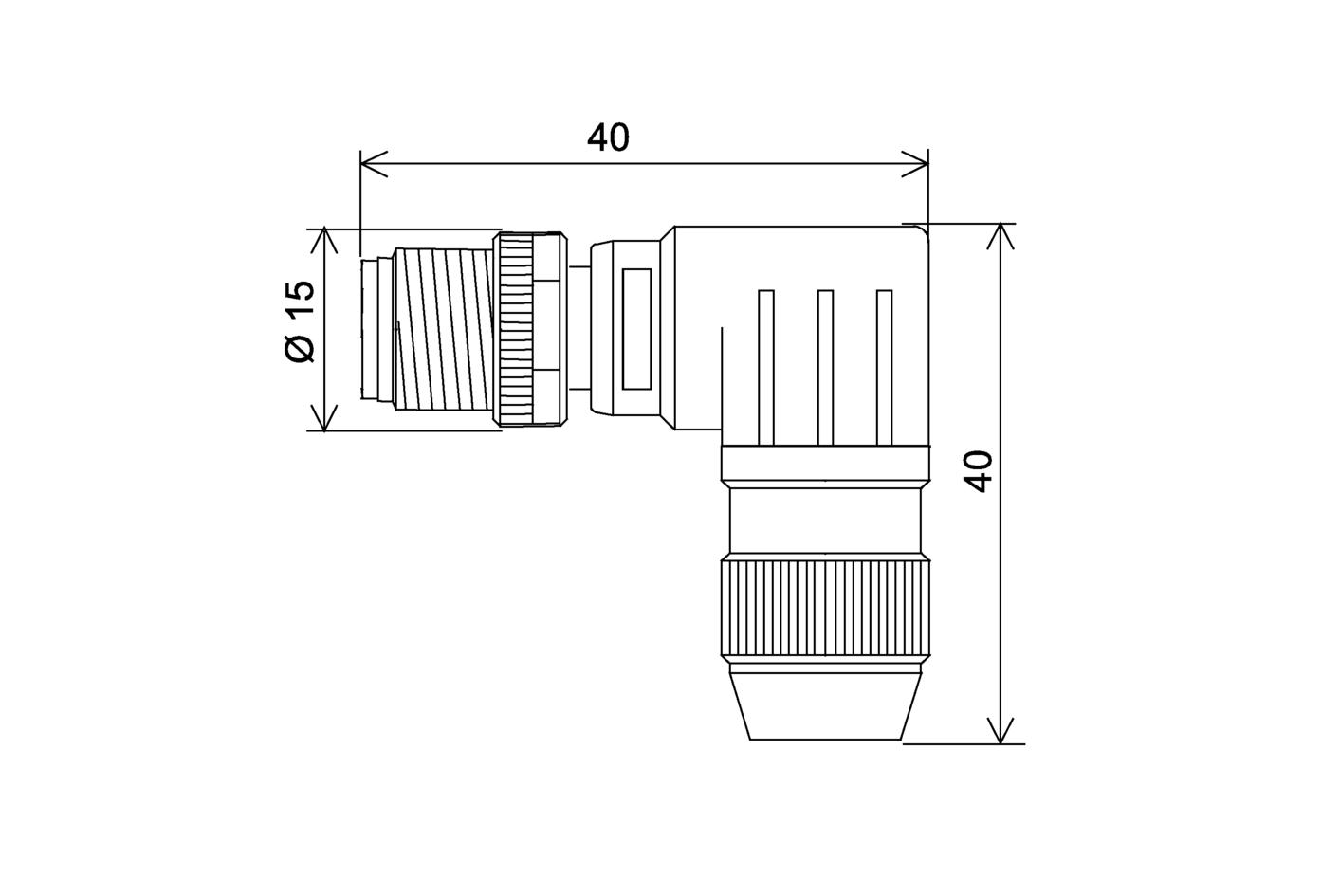

| Connector | Male, angled, M12 |
| Contact material | Metal, brass, gold-plated |
| Contact-carrier material | Plastic, PA, BK |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP67 |
| Grip body material | Plastic, PA, BK |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Number of pins | 4 |
| Rated voltage |
|
| Resistance | 10 mΩ |
| Standards | IEC 61076-2-101 |
